Product form

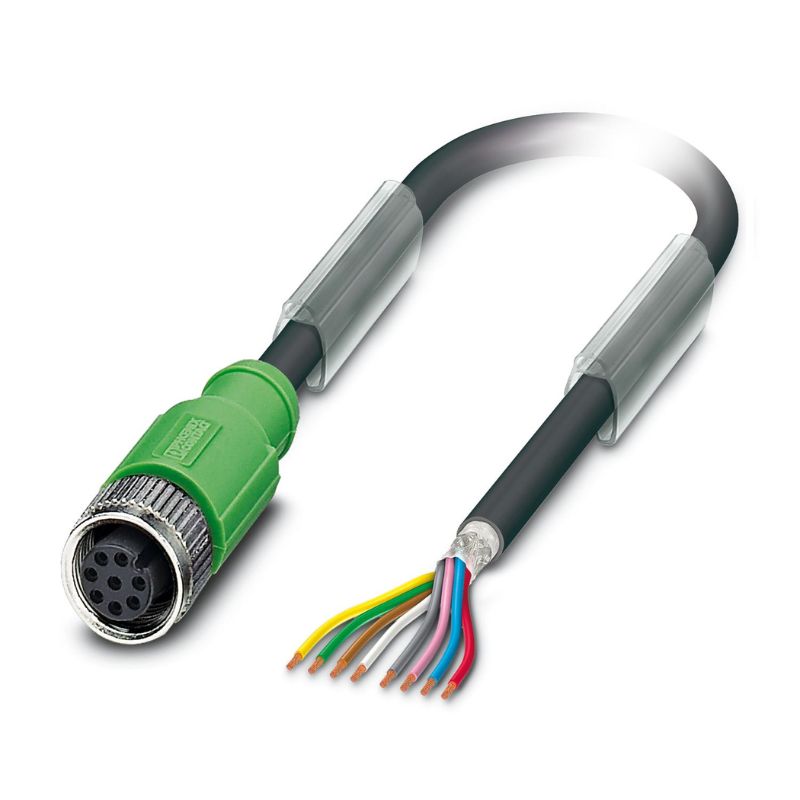

Sensor Cable

SC.D.100

SKU: 11886
Barcode: 4255921385125

Als High-End-Verbindung der Serien HE20x / 663 vereint dieser Typ eine hohe Polzahl mit einer konsequenten Schirmanbindung an die Verschraubung. Er ist die erste Wahl für komplexe Systemarchitekturen, die gleichzeitig hohe Datendurchsätze und maximalen Schutz vor elektromagnetischen Feldern fordern.

Merkmale

  • 8-polig, Schirmung konsequent auf Rändel
  • 8 x 0,25 mm² für präzise Signale
  • Zinkdruckguss-Verschraubung für industrielle Langlebigkeit
  • Sehr gute Hydrolyse- und Mikrobenbeständigkeit
  • Ausgelegt für anspruchsvolle Multi-Sensor-Systeme

Delivery time: 10 – 13 working days

No stock 96,00 € plus VAT, shipping costs will be charged at checkout.

Product properties
Length 10 Meter
Number of Poles 8
Shielding Kabel Geschirmt
Schirm auf Rändel aufgelegt
Suitable for HE20x
663 (alternatives Erdungskonzept)
Environmental and operating conditions
Ambient Temperature (Fixed Installation) -40°C … +80°C
Ambient Temperature (Flexible Installation) -25°C … +80°C
Protection Class IP65
IP67
Halogen Free Nach DIN VDE 0472 Teil 815
Nach IEC 60754-1
Flame Resistance Nach UL FT-2
Nach UL 758/1581 (horizontal)Nach UL 758/1581 FT2DIN EN 60332-2-2 (20 s)
Oil Resistance Nach IEC 60811-404
Additional Resistances Hydrolyse- und mikrobenbeständig
beständig gegen Seewasser
bedingt UV-beständig (nach DIN EN ISO 4892-2-A)
Abriebsarm
Special Properties Schleppkettentauglich
Connector features
Number of Poles of Connector 8

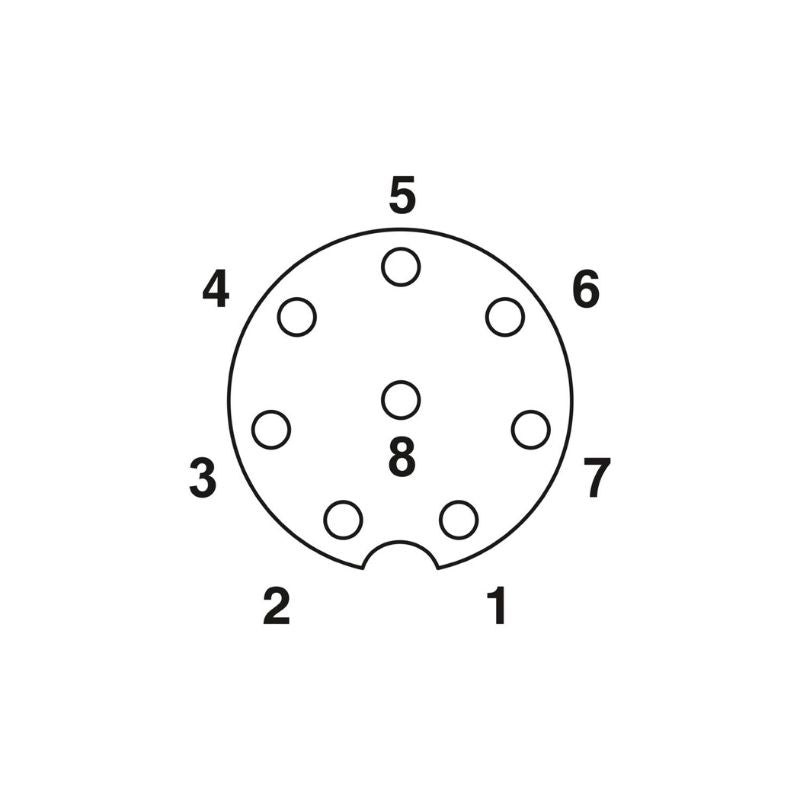

Coding (Standard) A-Kodierung nach IEC 61076-2-101
Material of Grip Body TPU (schwer entflammbar, selbstverlöschend)
Material of Knurl Zinkdruckguss (vernickelt)
Cable features
Material of Outer Sheath PUR (schwarz)
Material of Wire Insulation PP
Conductor Cross-Section 8 x 0,25 mm²

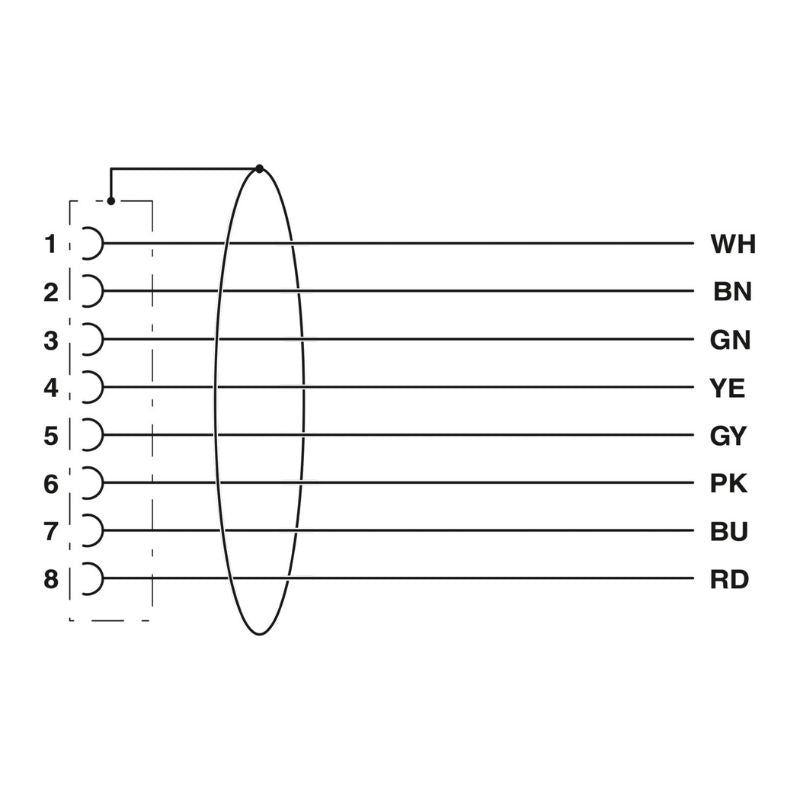

Wire Colors Braun, Weiß, Grün, Gelb, Grau, Rosa, Blau, Rot
Shield 0,85

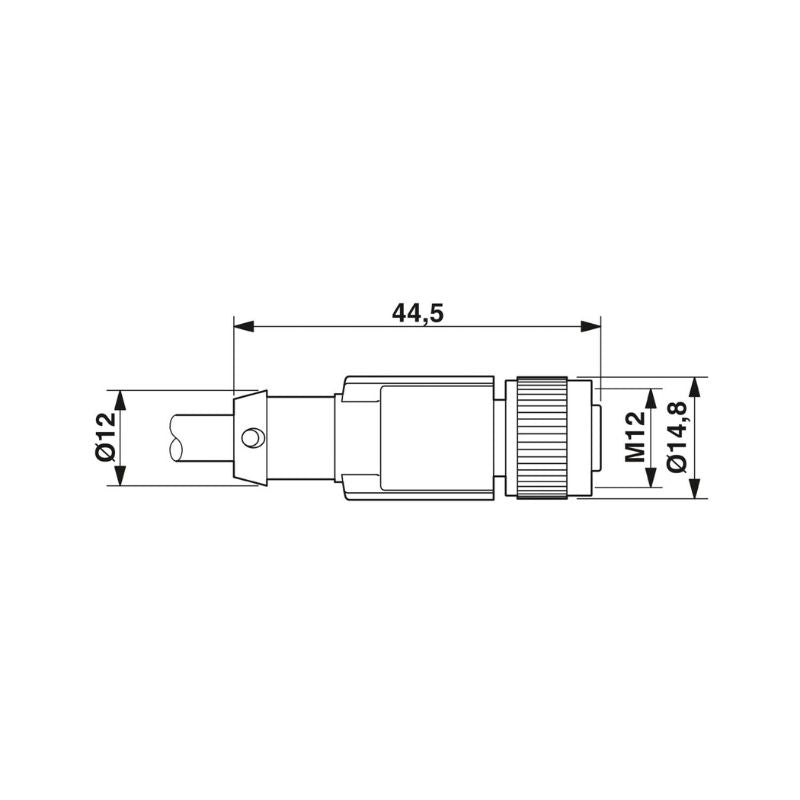

Outer Diameter 5,9 mm ±0,2 mm
Stripping at Free End Freien Ende (50 mm Abmantelung)
